Suspensions

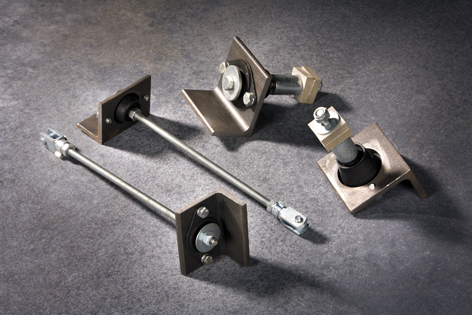

Stabilisers / hanging and standing fixed points.

The stabilisers are sized and positioned to allow maximum thermal expansion of the exhaust system between the fixed points in the exhaust and the stainless steel bellows. It is necessary to place the stabilisers at an angle of approx. 90° for flexible support of the exhaust piping in the required directions. If necessary, the length of the stabiliser can be reduced by one-third of its length.

The hanging fixed points support the exhaust system and control the dynamic forces which occur in the system while the vessel is in operation. The fixed points control the direction of thermal expansion within the exhaust system.

The standing fixed points support the exhaust system and control the dynamic forces which occur in the system while the vessel is in operation. The fixed points control the direction of thermal expansion within the exhaust system.
